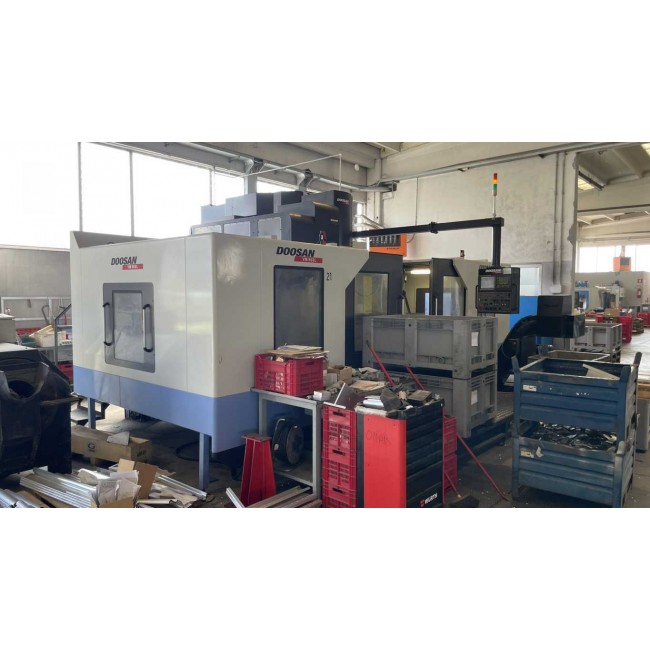

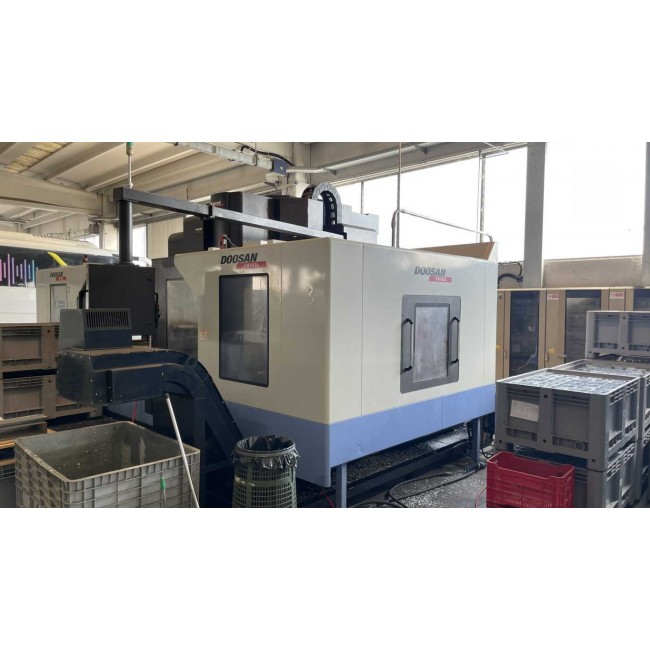

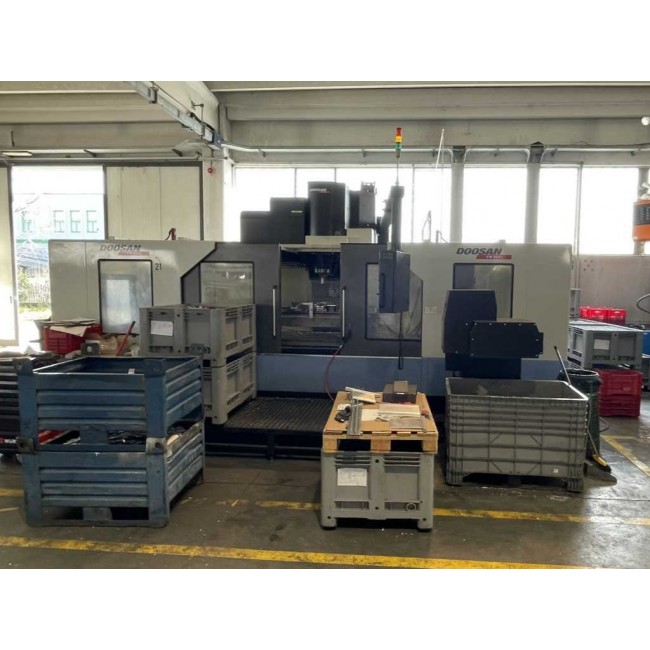

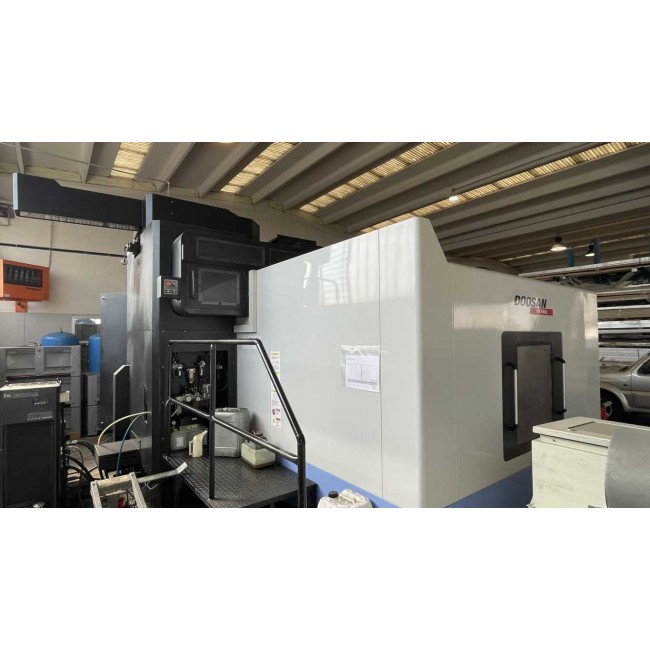

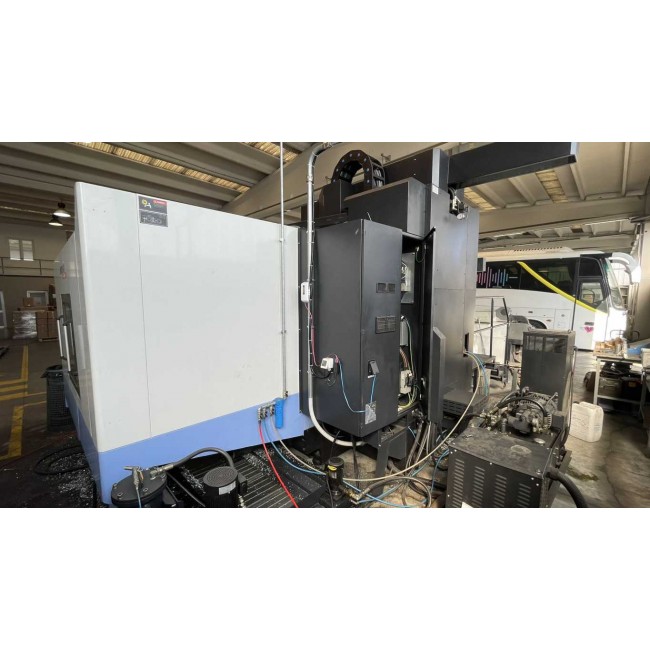

VERTICAL MACHINING CENTER DOOSAN VM 960 L
AXIS MOVEMENT
X: 2,400 MM
Y: 960 MM
Z: 800 MM
MIN/MAX SPINDLE NOSE/TABLE DISTANCE: 200/1,000 MM
X RAPID SPEEDS: 16 M/1’
Y RAPID SPEEDS: 16 M/1’
Z RAPID SPEEDS: 16 M/1’

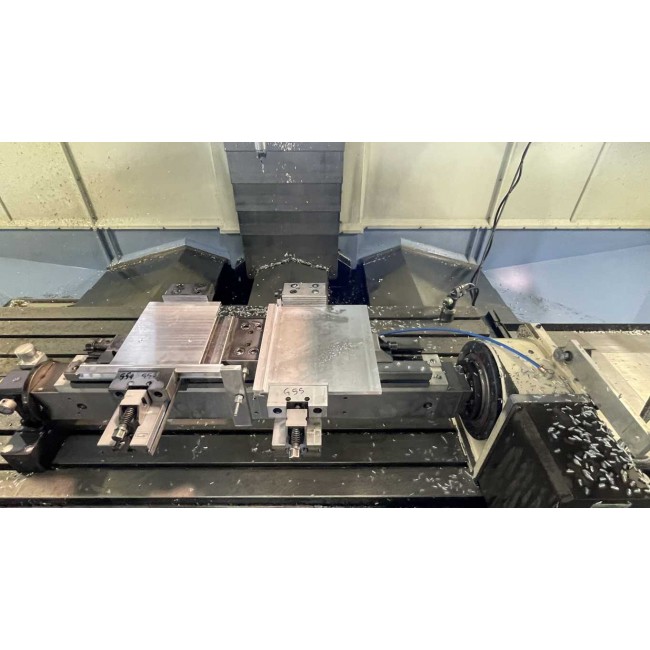

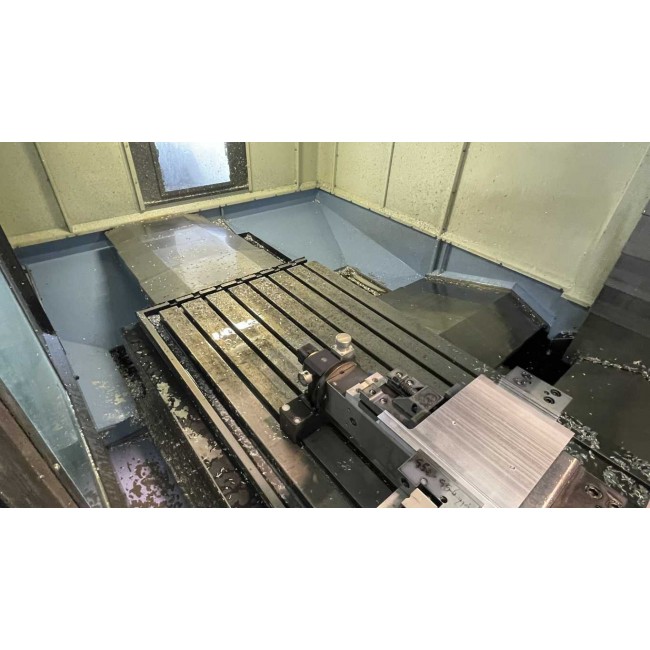

TABLE
DIMENSION: 2,600 X 950 MM
MAX LOADABLE WEIGHT ON THE TABLE: 4,500 KG

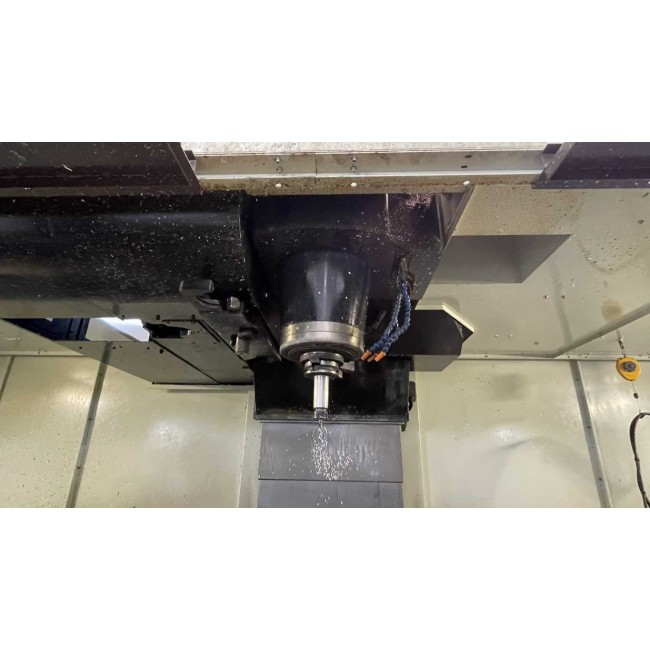

ELECTRIC SPINDLE
SPEED: 12,000 RPM
SPINDLE TAPER: ISO 50
MAX AVAILABLE POWER: 25 KW
TOOL WAREHOUSE: 30 TOOLS

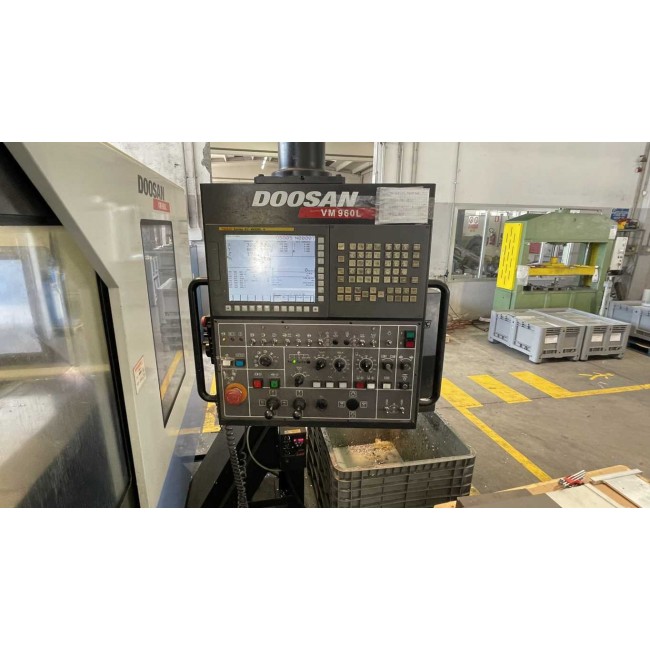

CONTROL

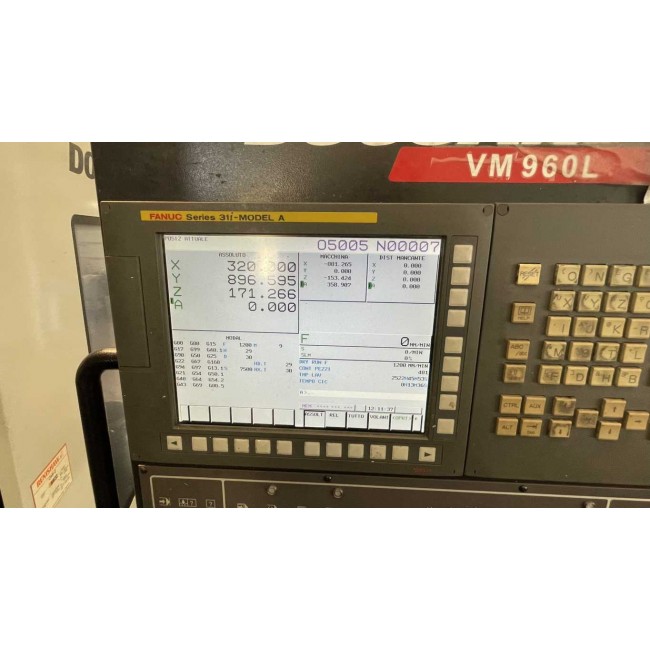

FANUC 31I- MODEL A
GENERAL
WEIGHT: 21,000 KG
TOTAL INSTALLED POWER: 70 KVA
COMPRESSED AIR PRESSURE: 6 BAR

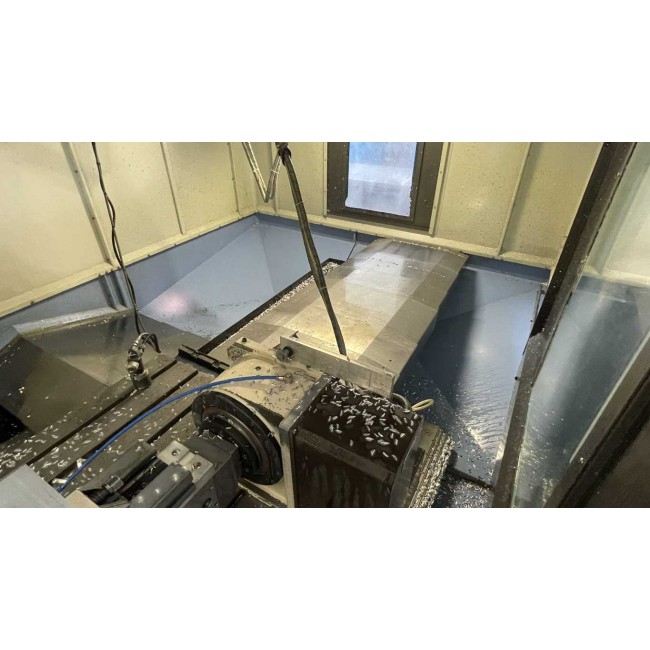

COMPLETE WITH 4TH AXIS TABLE
TSUDAKOMA MOD. RWA 320R
